EC - Confirm your device Host PC Settings

EC - Confirm your device Host PC Settings

To successfully connect your EC device to your software account, you will need to confirm that the Host PC Settings are correct.

To confirm the Host PC Settings, navigate to:


1. Menu

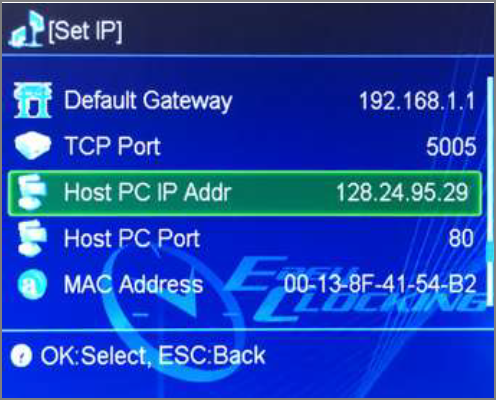

2. Settings -> Set IP -> Host PC Settings

The EC clock uses one of two options for the Host PC IP address and Host PC Port.

  1. Option 1 - Host PC IP address: 204.011.236.132 with corresponding Host PC Port: 80

If these settings do not work, you can test the following specifications:

  1. Option 2 - Host PC IP address: 204.011.236.181 with corresponding Host PC Port: 5010

    Easy Clocking Support Team Contact Details



    Contact our Support Team on 1300 693 610
