Data Collection Overview

Data Collection Overview

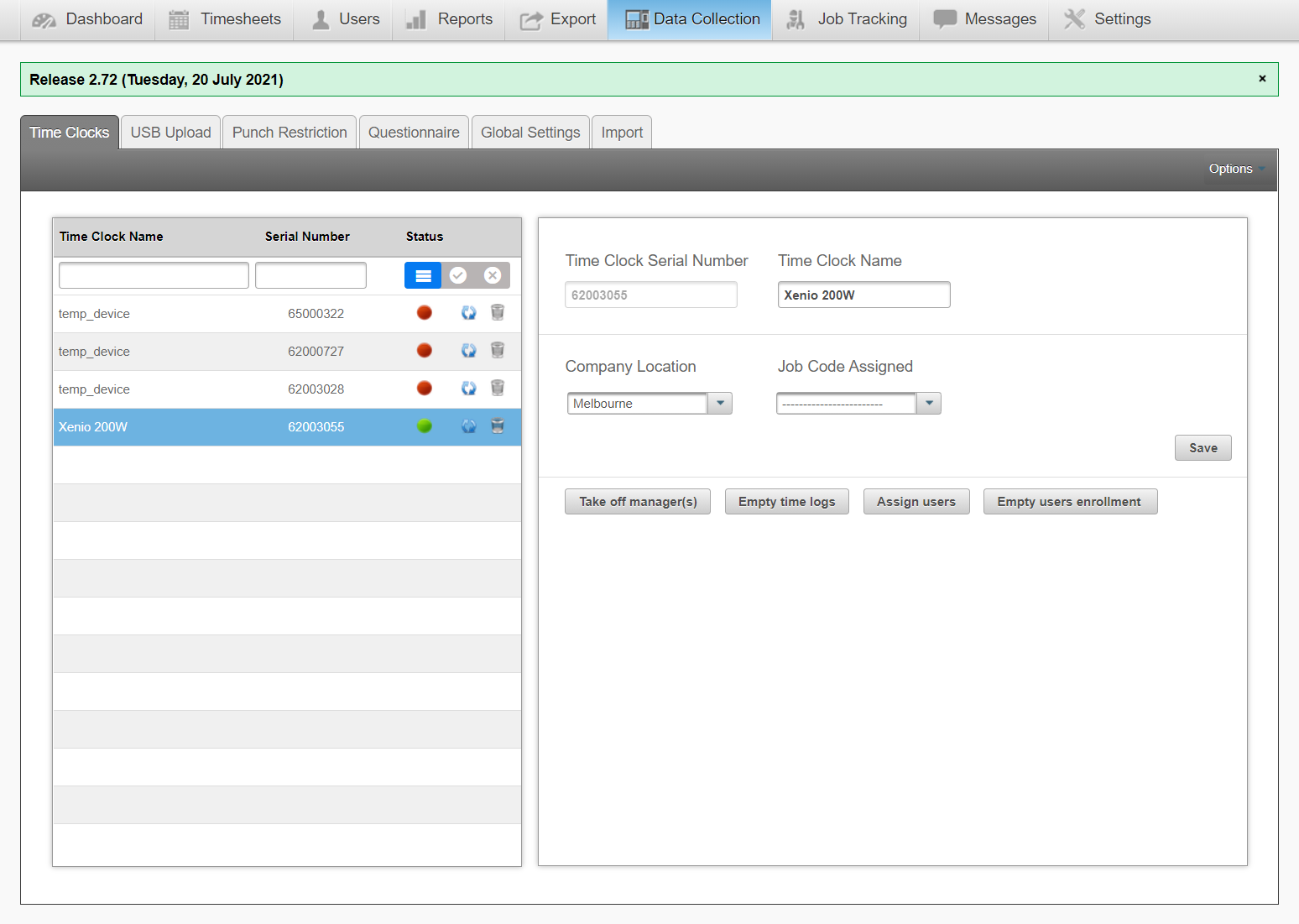

Data Collection time clocks shows all your time clocks and also displays relevant information about the time clock.

  1.  Time Clock Name. - This can be any name you wish e.g. Warehouse device, Office device or could be the location that the device is - Adelaide device
  2.  Time Serial Number. - This is the 8-digit number located in the back of the time clock. Also available in the time clock data information.
  3.  Time Clock Connection Status. -  Online for Green, Offline for Red.
  4.  Company Location .- Enter the company location the clock belongs to.
  5.  Job Code Assigned. - Select the job this clock is assigned if applicable.
  6.  Take Off Manager. - Click this button to set all employee profile in the time clock to employee level.
  7.  Empty Time logs. - Click this button to delete the time logs store in the time clock memory. The time clock will store up to 100.000 records in memory.
  8.  Enrol All Users. - Click this button to enrol all the employee information in the software including fingerprints to the clock.
  9.  Empty User Enrolment. - Click this button to delete all the users enrolled on the time clock.

 Please note: if you make any changes to Time Clock Name or Company Location please press the SAVE button.




    Easy Clocking Support Team Contact Details



    Contact our Support Team on 1300 693 610
