Xenio - Connecting to a Wi-Fi network

Xenio - Connecting to a Wi-Fi network

Connecting your Xenio to a Wi-Fi network is as easy as connecting your mobile phone... And if the connection ever drops, the time clock will retain the data until it reconnects to your Wi-Fi, and then transfer everything into the software!


Please note: WiFi card in the clock is 2.4 GHz ONLY. 5 GHz networks do not populate in the network list.

To connect your time clock to a Wi-Fi network, navigate to:

  1. Menu

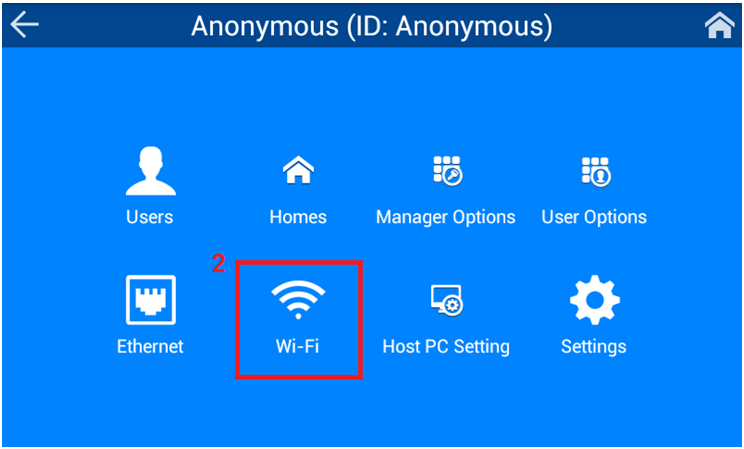

2. Wi-Fi



3. Confirm that the switch at the top of the screen is set to ON.

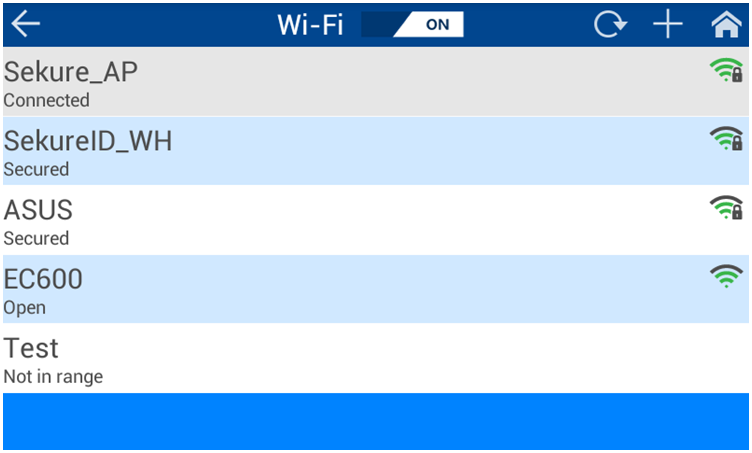

A list of available Wi-Fi networks will load. Select your Wi-Fi network.

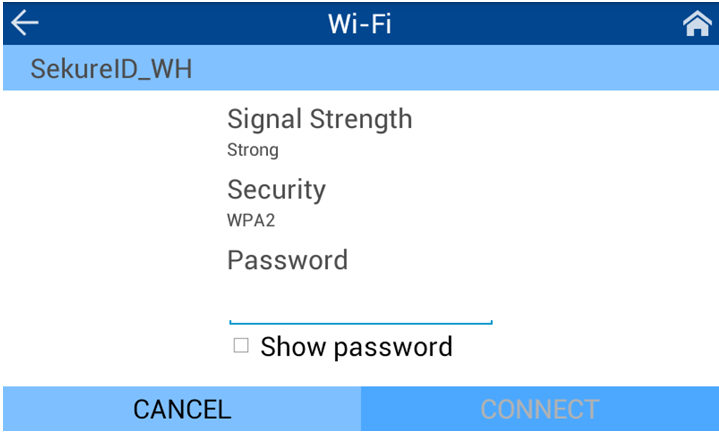

4. You will be prompted to enter your Password. Click Connect when finished.



If you would like to switch from DHCP to Static, scroll to the bottom of the screen and click on the drop-down for the option.


    Easy Clocking Support Team Contact Details



    Contact our Support Team on 1300 693 610
